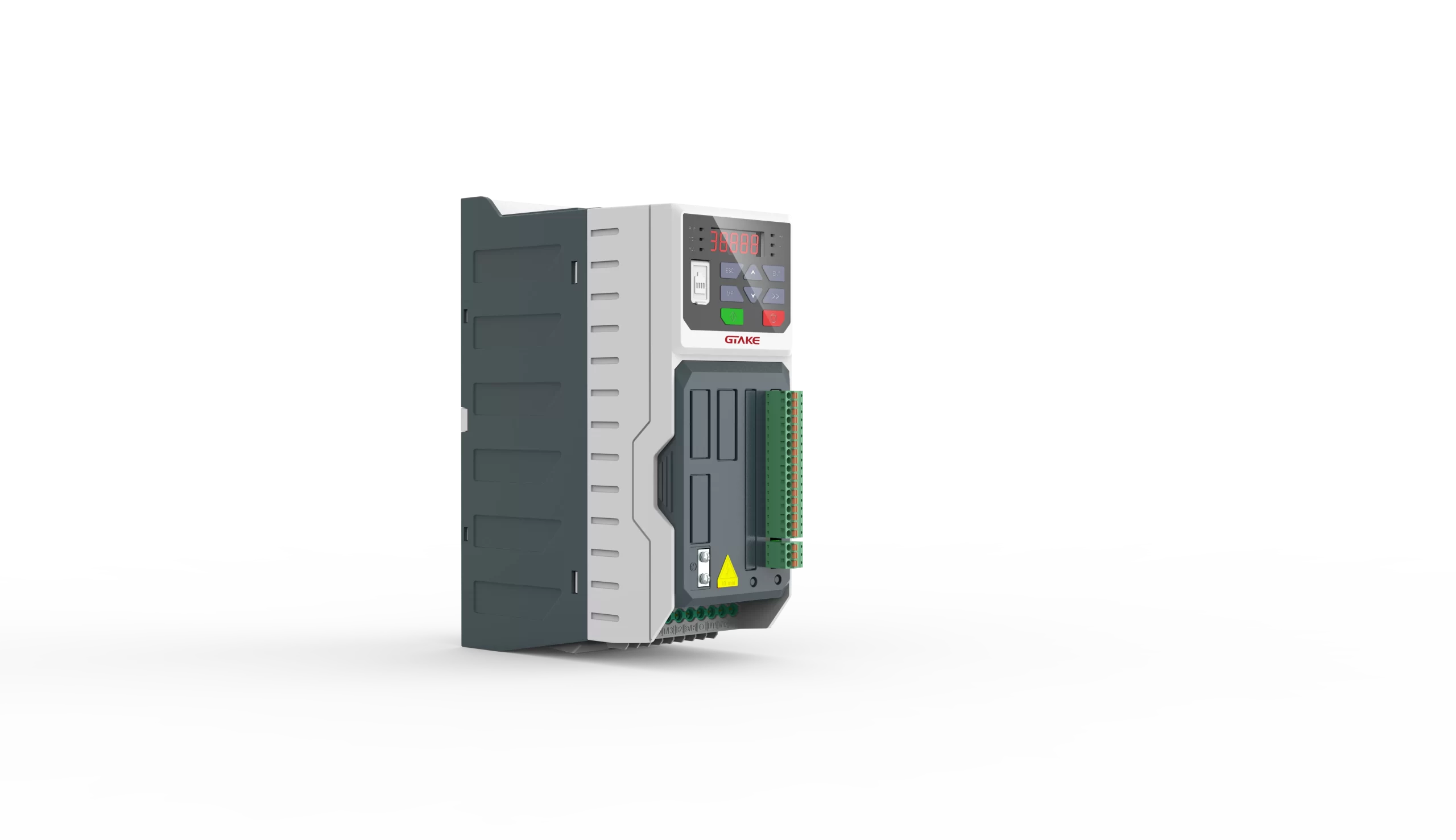

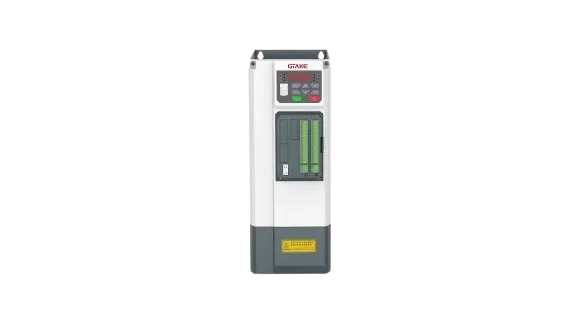

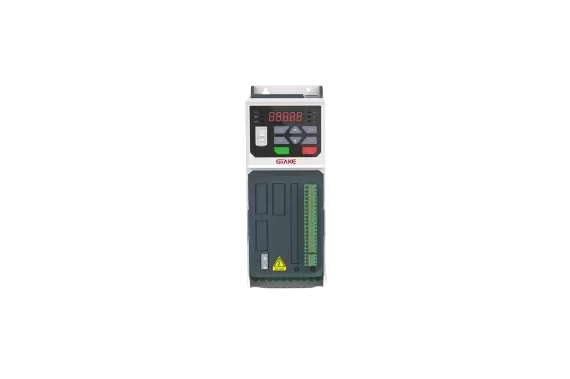

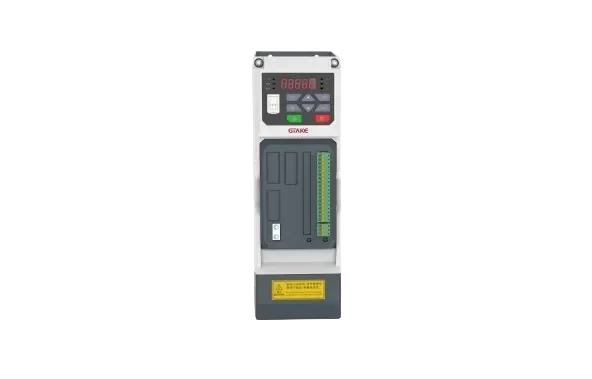

GK900作为全能型书本式变频器，其可用于替代GK620和GK820，性价比更高。其性能相比GK620和GK820，得到了优化和增强，还配置了很多新功能。该系列几乎可应用于各种各样不同的行业，从简易风机水泵控制到其它各种高端应用。
灵活的风扇控制功能、高精度的转矩限定、电机温度保护功能、异步机和同步机的参数辨识
编码器脉冲输入最高频率2MHz，内置脉冲自适应滤波功能
优异的MTPA功能，提高电机转矩输出能力，减少电机发热| 箱体 | 变频器型号 | 功率等级 | 输出电流 | 输入电流 | 适配电机 |
| （kW） | （A） | （A） | （kW） | ||
| 重载应用 | |||||
| S01 | GK900-4T0.75B | 0.75 | 2.5 | 3.5 | 0.75 |
| GK900-4T1.5B | 1.5 | 3.8 | 5 | 1.5 | |
| GK900-4T2.2B | 2.2 | 5.5 | 6 | 2.2 | |
| GK900-4T3.7B | 3.7 | 9 | 10.5 | 3.7 | |
| S02 | GK900-4T5.5B | 5.5 | 13 | 14.6 | 5.5 |
| GK900-4T7.5B | 7.5 | 18 | 20.5 | 7.5 | |
| GK900-4T11B | 11 | 24 | 29 | 11 | |
| S03 | GK900-4T15B | 15 | 32 | 35 | 15 |
| GK900-4T18.5B | 18.5 | 37 | 44 | 18.5 | |
| GK900-4T22B | 22 | 45 | 50 | 22 | |
| S04 | GK900-4T30(B)* | 30 | 60 | 65 | 30 |
| GK900-4T37(B)* | 37 | 75 | 80 | 37 | |
| S05 | GK900-4T45(B)* | 45 | 91 | 83 | 45 |
| GK900-4T55(B)* | 55 | 112 | 102 | 55 | |
| S06 | GK900-4T75(B)* | 75 | 150 | 157 | 75 |
| GK900-4T90 | 90 | 176 | 160 | 90 | |
| GK900-4T110 | 110 | 210 | 192 | 110 | |
| S07 | GK900-4T132 | 132 | 253 | 232 | 132 |
| GK900-4T160 | 160 | 304 | 285 | 160 | |
| S08 | GK900-4T185 | 185 | 350 | 326 | 185 |
| GK900-4T200 | 200 | 380 | 354 | 200 | |
| GK900-4T220 | 220 | 426 | 403 | 220 | |
| S09 | GK900-4T250 | 250 | 470 | 441 | 250 |
| GK900-4T280 | 280 | 520 | 489 | 280 | |
| S10 | GK900-4T315 | 315 | 590 | 571 | 315 |
| GK900-4T355 | 355 | 650 | 624 | 355 | |
| GK900-4T400 | 400 | 725 | 699 | 400 | |
| GK900-4T450 | 450 | 820 | 790 | 450 | |
| * 表示该功率等级变频器制动单元内置可选；GK900-4T30为例：不带制动单元型号为GK900-4T30，带制动单元型号为GK900-4T30B | |||||
| 箱体 | 变频器型号 | 功率等级 | 输出电流 | 输入电流 | 适配电机 |
| （kW） | （A） | （A） | （kW） | ||
| 轻载应用 | |||||
| S01 | GK900-4T0.75B | 1.5 | 3.8 | 5 | 1.5 |
| GK900-4T1.5B | 2.2 | 5.5 | 6 | 2.2 | |
| GK900-4T2.2B | 3.7 | 8 | 9.3 | 3.7 | |
| GK900-4T3.7B | 5.5 | 11 | 12.3 | 5.5 | |
| S02 | GK900-4T5.5B | 7.5 | 17 | 19.3 | 7.5 |
| GK900-4T7.5B | 11 | 23 | 27.8 | 11 | |
| GK900-4T11B | 15 | 30 | 32.8 | 15 | |
| S03 | GK900-4T15B | 18.5 | 37 | 44 | 18.5 |
| GK900-4T18.5B | 22 | 45 | 50 | 22 | |
| GK900-4T22B | 30 | 58 | 62.8 | 30 | |
| S04 | GK900-4T30(B)* | 37 | 75 | 80 | 37 |
| GK900-4T37(B)* | 45 | 88 | 80 | 45 | |
| S05 | GK900-4T45(B)* | 55 | 112 | 102 | 55 |
| GK900-4T55(B)* | 75 | 139 | 145.5 | 75 | |
| S06 | GK900-4T75(B)* | 90 | 176 | 160 | 90 |
| GK900-4T90 | 110 | 210 | 192 | 110 | |
| GK900-4T110 | 132 | 250 | 232 | 132 | |
| S07 | GK900-4T132 | 160 | 304 | 285 | 160 |
| GK900-4T160 | 185 | 350 | 326 | 185 | |
| S08 | GK900-4T185 | 200 | 380 | 354 | 200 |
| GK900-4T200 | 220 | 426 | 403 | 220 | |
| GK900-4T220 | 250 | 465 | 441 | 250 | |
| S09 | GK900-4T250 | 280 | 520 | 489 | 280 |
| GK900-4T280 | 315 | 585 | 566 | 315 | |
| S10 | GK900-4T315 | 355 | 650 | 624 | 355 |
| GK900-4T355 | 400 | 725 | 699 | 400 | |
| GK900-4T400 | 450 | 820 | 790 | 450 | |
| GK900-4T450 | 500 | 860 | 828 | 500 | |
| * 表示该功率等级变频器制动单元内置可选；GK900-4T30为例：不带制动单元型号为GK900-4T30，带制动单元型号为GK900-4T30B | |||||
